A fast dispatch is useful only when the valve arriving matches the machine’s coil, thread, function, flow and mounting requirements. By the end, you will have a practical method for checking an AIRTAC 4V210-08, comparing five-port alternatives and placing a Bangalore distributor order with fewer commissioning delays.
Key takeaways
- Request the complete valve code, port size, coil voltage and stock location.
- Use 4V210-08 for a five-port, 4/2 or 5/2 directional circuit only when specifications match.
- Confirm DC24V coil compatibility with your machine’s output and protection circuit.
- Ask for a physical stock check, dispatch time and replacement plan before ordering.
How to confirm stock before placing a distributor order
Do not approve an order from “Airtac 5/2 valve” alone. An Airtac solenoid valve supplier for distributors in Bangalore needs the exact configuration to identify physical stock and dispatch the correct part.
Send this specification:
- Exact SKU; 24 VDC coil; single- or double-solenoid function
- Port-thread standard; connector style; manual-override type
- Individual or manifold mounting; quantity; required delivery location
Ask for written confirmation of:
- Physical stock, not incoming stock; available carton quantity and minimum order quantity
- Same-day or next-day dispatch cut-off; courier or local Bangalore delivery options
- Packing condition; tax invoice details; warranty and replacement process
- Batch number and product revision
A locally available BSP valve is not an acceptable substitute for an NPT requirement. The threads can look similar, then leak or become damaged when forced together. A different coil voltage creates commissioning risk: the valve may not shift, or the PLC output and coil can be damaged.
| Option | Confirmation needed | Consequence if mismatched |
|---|---|---|
| BSP valve | G, Rc or R thread marking | Leakage or damaged threads |
| NPT valve | NPT marking and matching fittings | Do not substitute BSP |
| 24 VDC coil | Voltage, current, connector and suppression | Failed switching or output damage |
For repeat orders, ask the supplier to record the complete configuration, reserve distributor carton quantities when demand is predictable and confirm that replacement stock will retain the same connector, coil and thread specification. A solenoid valve distributor in Bangalore should confirm these details before accepting payment.
How the five ports and 4V210-08 fit the pneumatic circuit
Port 1(P) is the supply inlet. Ports 2(A) and 4(B) connect to opposite sides of a double-acting cylinder, while 3(R) and 5(S) are separate exhaust outlets.
| Valve type | Air paths | Suitable actuator |
|---|---|---|
| 5/2 | One spool position supplies A and exhausts B; the other supplies B and exhausts A | Double-acting cylinder |
| 3/2 | One supply, one actuator path and one exhaust path | Single-acting actuator |
| 2/2 | Opens or closes one flow path; it provides no directional control or dedicated actuator exhaust arrangement | Simple on/off isolation |
A five port pneumatic valve therefore controls extension and retraction through one body. On a 4V210 single-solenoid valve, energising the coil shifts the spool; releasing it allows spring return to the opposite position. Do not confuse it with the 4V220 double-solenoid version.
For an Airtac 4V210-08 supplier enquiry, complete this fit-check sequence:
- Confirm the 4V200 series and 4V210 single-solenoid, spring-return function.
- Confirm that 08 means nominal 1/4-inch port size, not the thread form.
- Match coil voltage, thread marking, mounting pattern and tubing outside diameter.
- Check the rated pressure range and required flow against cylinder bore, stroke and desired speed.
Request written confirmation that the thread is G/BSPP, Rc or R/BSPT, or NPT. Never force apparently similar threads together; damaged threads create leaks and can ruin the valve body.
Which technical figures determine whether the valve will work
Do not quote an Airtac 4V210-08 supplier from the port size alone. The 4V210-08 is pilot-operated, not a zero-pressure direct-acting valve: commonly cited 4V200-series boundaries are approximately 0.15 MPa minimum pilot pressure and 0.8 MPa maximum operating pressure. Verify these figures against the supplied product revision.
| Figure | Why it matters | What to obtain |
|---|---|---|
| Pressure | Low pressure can stop pilot shifting; excess pressure can damage the valve | Exact rated operating pressure and proof pressure |
| Flow | Port size does not predict cylinder speed | Effective flow area, Cv or normal litres per minute, with test conditions |
| Temperature | Seals and coil performance depend on the environment | Ambient and media temperature range |
| Electrical and timing | A clicking coil does not prove correct valve movement | Coil power, response time and permissible air quality |
Ask the supplier to confirm:
- Effective area, Cv or normal litres per minute under stated inlet pressure, outlet pressure, temperature and measurement standard; these figures cannot be compared without test conditions.
- Suitability for the cylinder bore, stroke time, supply pressure, tubing length, fitting restrictions and exhaust silencer capacity.
- Clean, filtered compressed air, using filtration around the 40-micrometre class where specified; drain water and control compressor oil.
- Silencer condition and replacement access, because an oil-soaked or restricted muffler can limit exhaust flow.
A blocked pilot passage can prevent shifting even when a 24 VDC coil clicks correctly. Inspect contaminated silencers before condemning the coil.
How coil voltage, valve behaviour and alternatives affect machine safety
A 24 VDC coil is an exact electrical requirement, not a nominal control-system label. Confirm voltage tolerance, actual wattage or current, connector type, LED, suppression diode and polarity with your DC24V solenoid valve supplier. Check the PLC transistor output rating and whether it sources or sinks current; match the coil wiring to that arrangement.
Confirm flyback-suppression compatibility, and never connect a 24 VDC coil to 230 VAC.
- Choose single-solenoid spring return when power loss must move the actuator to a defined spring position.
- Choose double-solenoid operation only when the last shifted state is acceptable: after power loss, the spool generally stays there until the opposing coil is energised, or pressure and friction alter the result.
- Treat the manual override as an interlock bypass; pressing or leaving it actuated can move the spool during testing and defeat expected electrical control.
| Option | Wiring and response | Exhaust, failure and expansion |
|---|---|---|
| Five-port pneumatic valve | Two coil circuits or one coil plus spring; direct directional response | Separate exhausts and easy manifold expansion |
| Electrically controlled 3/2 valve | Simpler single-actuator wiring | One exhaust path; suited to single-acting actuators |
| Air-pilot valve | Pilot tubing and a control valve add delay and dependencies | Shifting fails if pilot pressure or passages fail |
| Mechanical valve | Cam, lever or roller provides actuation | Motion depends on machine contact and alignment |
| Separate 2/2 valves | More wiring and sequencing logic | Flexible isolation, but no inherent directional control |
A 5/2 valve is unsuitable for single-acting actuation, simple on/off isolation, or fail-safe motion requiring defined shut-off and exhaust. A double-solenoid valve is the wrong choice when power loss must force a known cylinder position.
How to place a fast Bangalore distributor order without creating a second delay
A purchase request must identify the complete valve configuration, not just “Airtac 5/2 valve.” Use this copy-ready structure:
- AIRTAC 4V210-08, 5/2, single-solenoid spring return, 24 VDC, confirmed thread form: G/BSPP, Rc/R/BSPT or NPT.
- Connector: DIN 43650 or EN 175301-803 if required; state LED, suppression diode and polarity requirements.
- Mounting: individual or manifold; quantity: _; distributor carton quantity: _.
- Delivery PIN code: _; dispatch deadline: _; request local Bangalore delivery route, freight terms and tax invoice.
- Before approving a substitute, request photographs of the valve label, port marking, coil label and connector.
- Require written stock count, minimum order quantity, carton packing, dispatch time, replenishment lead time and repeat-order identification.
Hakimi Pneumatic & Hardware can support an AIRTAC solenoid valve supplier for distributors in Bangalore by recording this configuration, checking physical stock and tagging the exact specification for repeat orders. Ask whether replacement stock will retain the same thread, coil, connector and mounting format.
Do not accept a multiple-2/2 manifold as an automatic equivalent for a 5/2 4V210-08. It controls separate on/off flow paths and serves a different circuit unless an engineer has redesigned the application. A solenoid valve distributor in Bangalore or DC24V solenoid valve supplier should confirm the complete configuration before quoting a substitute.
Related products

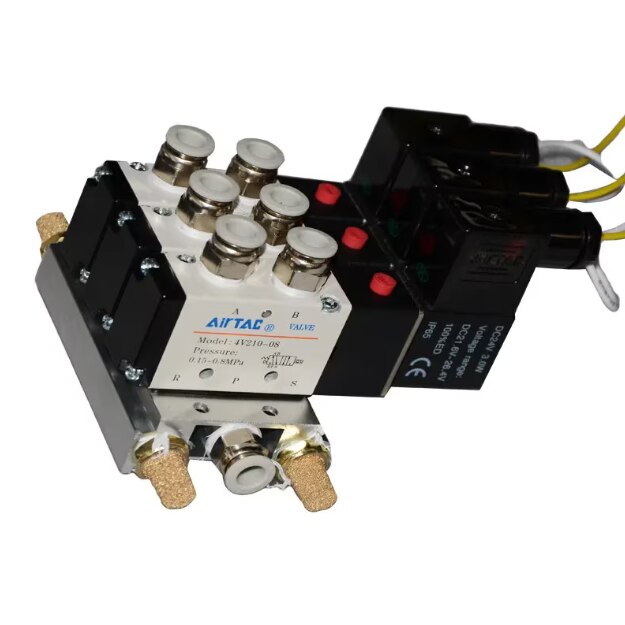

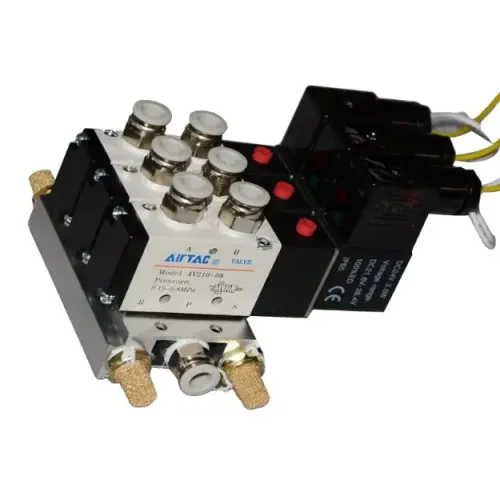

 | Solenoid Valve AIRTAC 4V210-08 Pneumatic Solenoid Valve – DC24V, 5-Port, Muffler Fitted The AIRTAC 4V210-08 is a high-performance 5-port solenoid valve designed for precise control of compressed air in industrial automation systems. View product → |
 | Solenoid Valve Manifold Pneumatic Solenoid Valve Manifold Assembly – DC24V, IP65 Engineered for precision and compact control, this Pneumatic Solenoid Valve Manifold Assembly features multiple 2/2-way solenoid valves mounted on a... View product → |
Frequently asked questions
What details should distributors confirm before ordering an Airtac solenoid valve?
Confirm the complete model code, five-port configuration, port size, coil voltage, valve function, connector type, mounting requirements and physical stock location.
How does an Airtac 4V210-08 fit a pneumatic circuit?
The 4V210-08 is a five-port directional valve with ports for supply, exhaust and two cylinder connections. Match its port markings, actuator type and flow requirements to the circuit.
Which technical figures decide whether the valve will work?
Check operating pressure range, effective area or flow rating, port size, response requirements, ambient temperature, seal material and electrical coil specifications.
How can coil voltage affect machine safety?
Match the coil to the machine’s actual control voltage, such as DC24V, and verify connector wiring, suppression and fail-state behaviour before installation.
